The Loden Coat Sleeve, Part 1

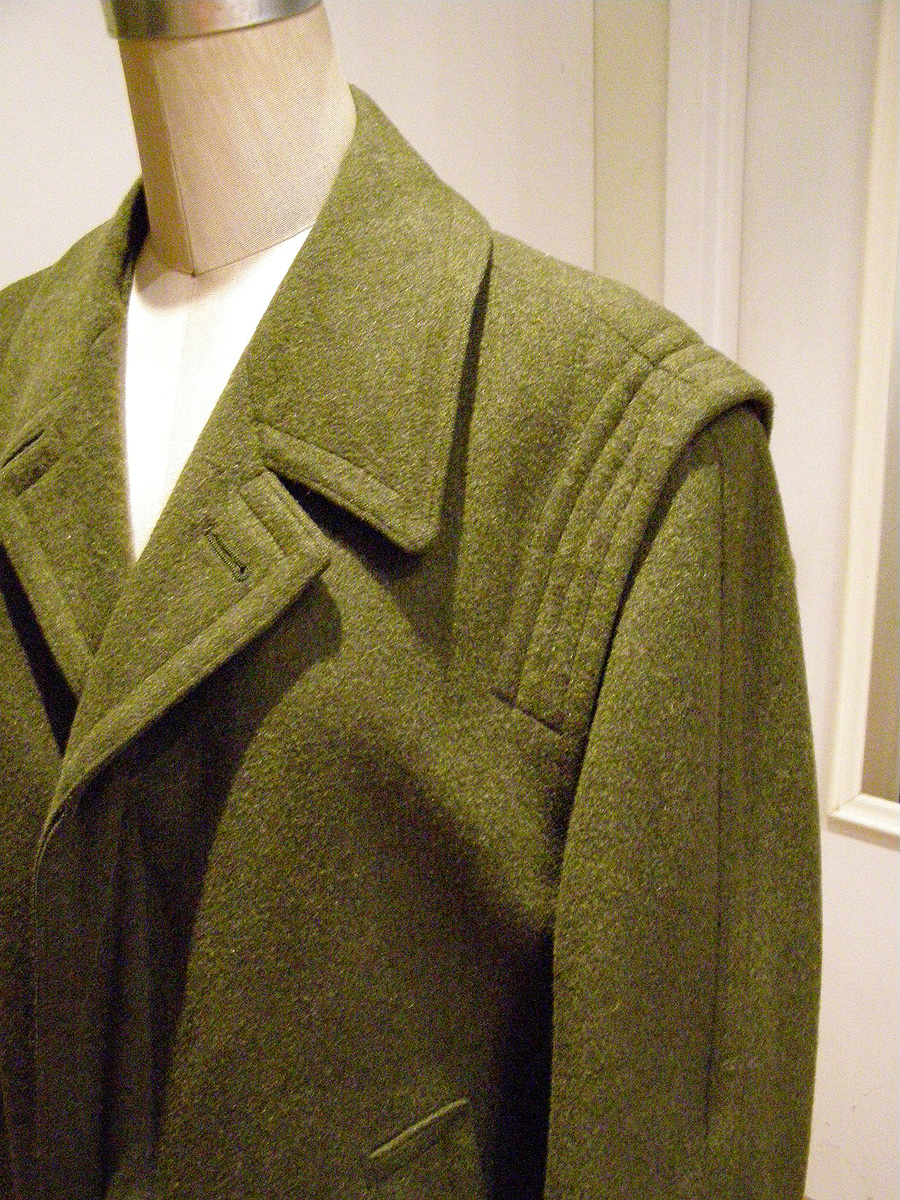

The shoulder detail on this loden coat is referred to as a flange.

loden coat sleeve 1

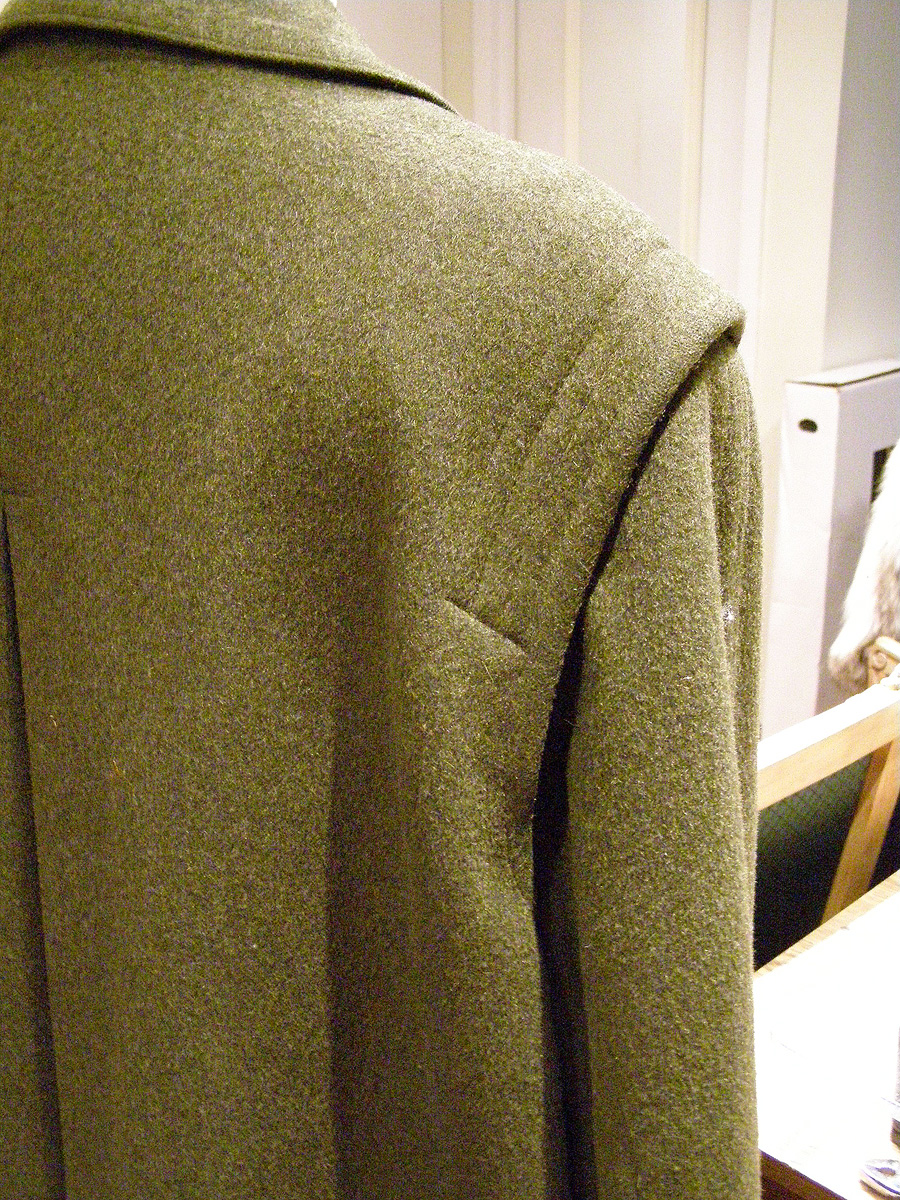

This flange, however, is constructed differently from others I’ve encountered over the years.

This is an unlined coat, which presents a challenge to constructing a flange.

loden coat sleeve 2

The solution is elegant and ingenious.

loden coat sleeve 3

Since this is an unlined coat, it needs a deep front facing to finish the inside and to provide space for an interior pocket. The facing extends from the front opening to the front armhole.

There’s a half-lining across the back to which the sleeve lining is attached.

loden coat sleeve 3

I’ll call this entire piece–the front facing plus half-lining–the interior facing.

loden coat sleeve 5

The half lining is backed with the wool fabric, and the edges of the facing and half-lining unit are bias-bound.

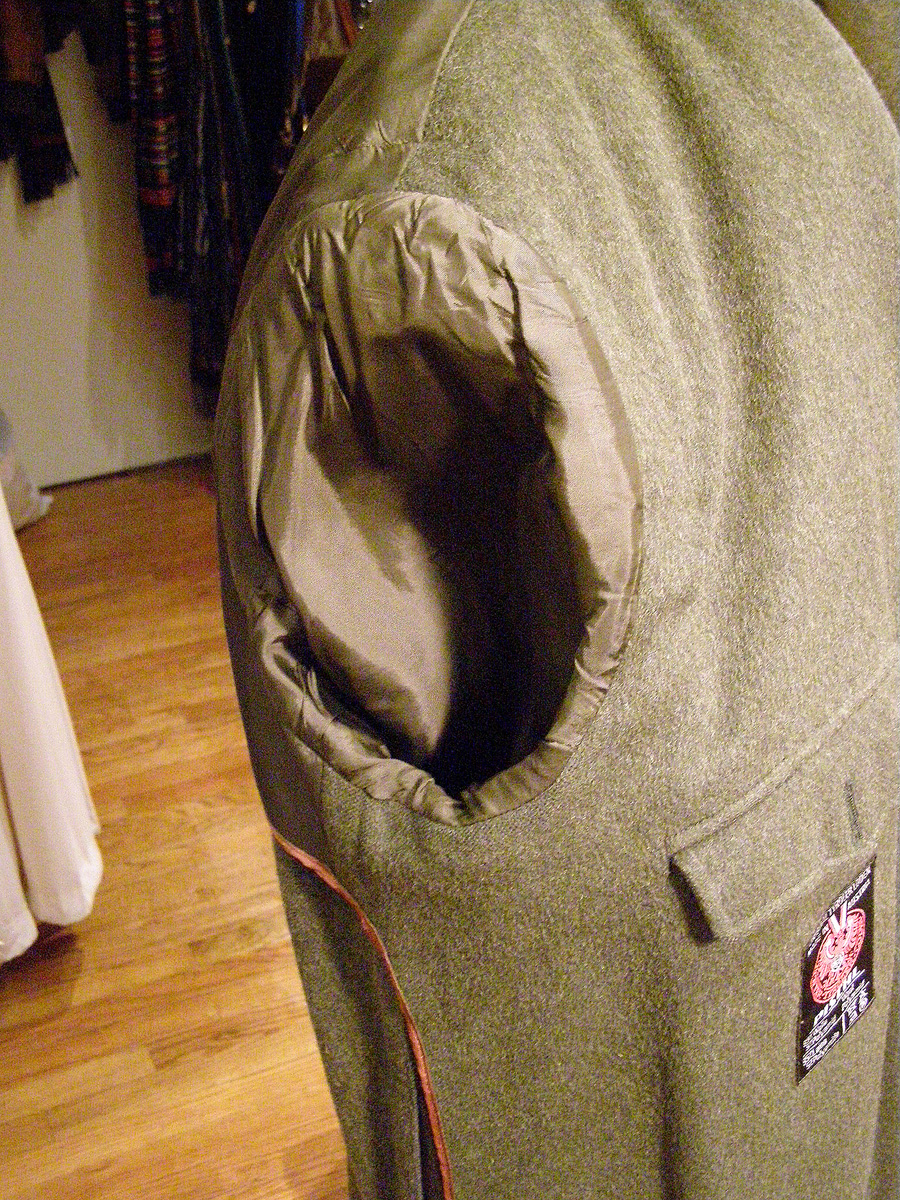

From the outside of the armscye, you can see straight through to the dress form: The sleeve isn’t sewn to the body under the arm.

loden coat sleeve 6

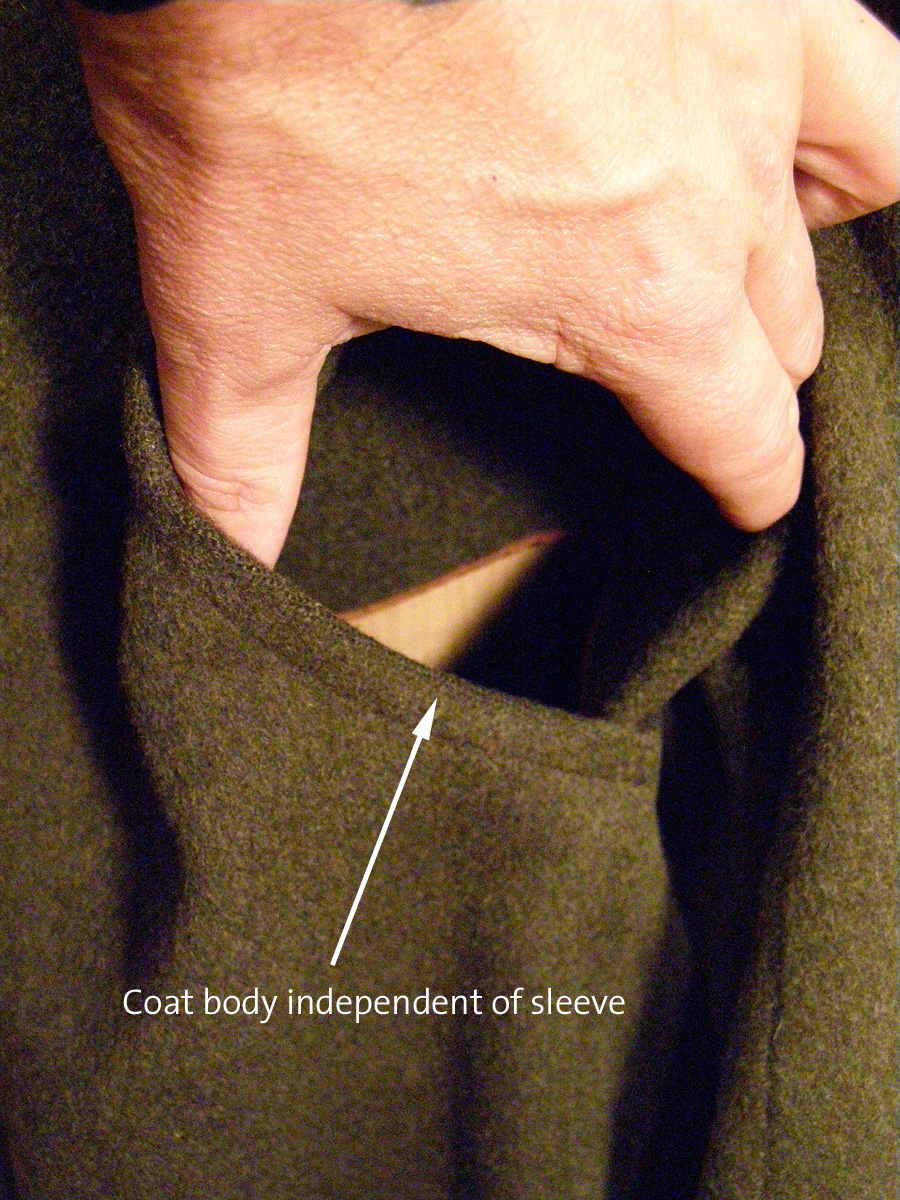

The sleeve is sewn to the facing, so, in a way, it floats inside the armhole of the outer coat.

There are four rows of topstitching along the shoulder area of the armhole.

loden coat sleeve 7

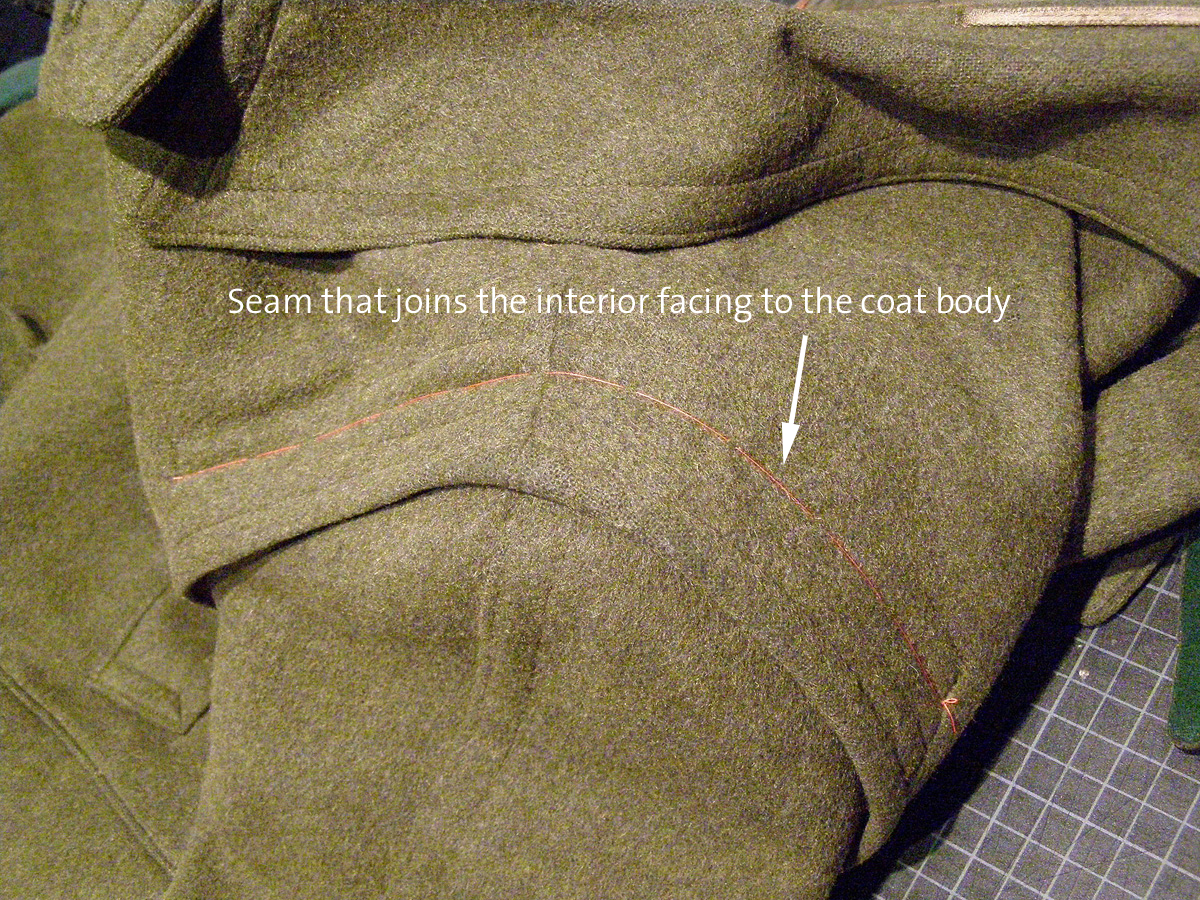

One row of topstitching joins the sleeve and interior facing to the shell of the coat; I’ve basted that row in red thread for visibility.

loden coat 8

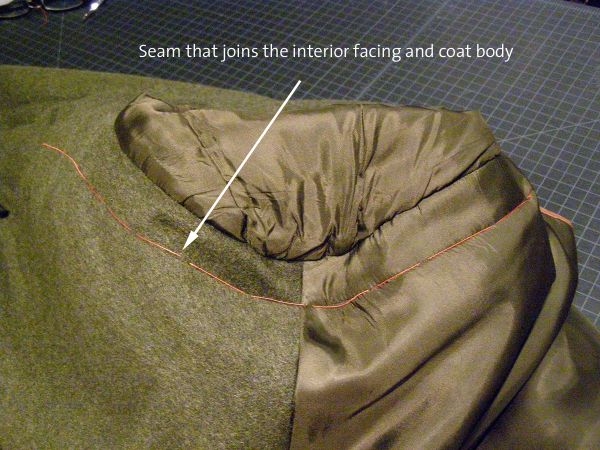

This is a view from inside the coat. The same row of stitching shown above is picked out in red thread tracing, as well.

In the first part of this two-part tutorial, we will cover the patternmaking for this sleeve. The second part will show the steps of construction.

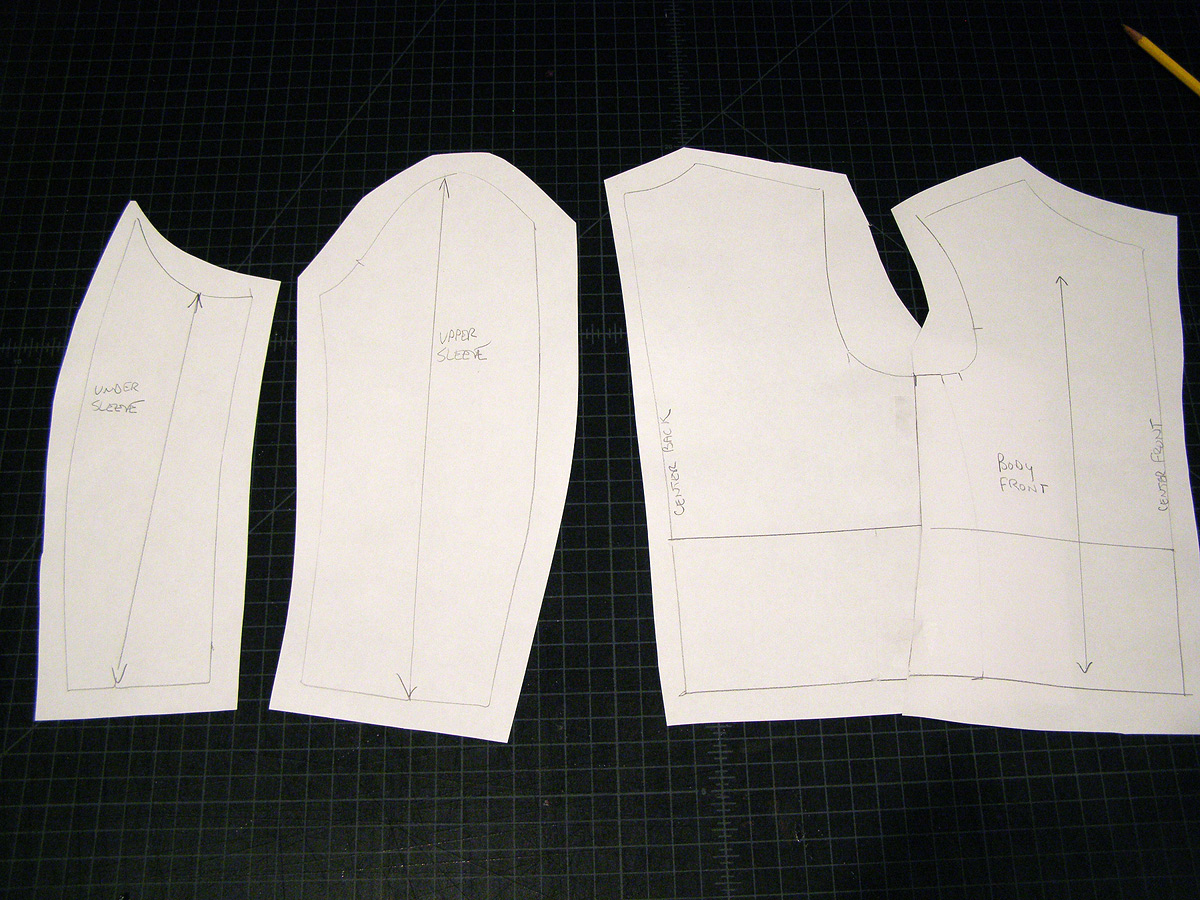

We begin with a jacket pattern. I’m using a two-part body, and a two-part sleeve.

loden coat sleeve 9

I’ve taped the side seams of the body together under the armhole for drafting the pieces.

loden coat sleeve 10

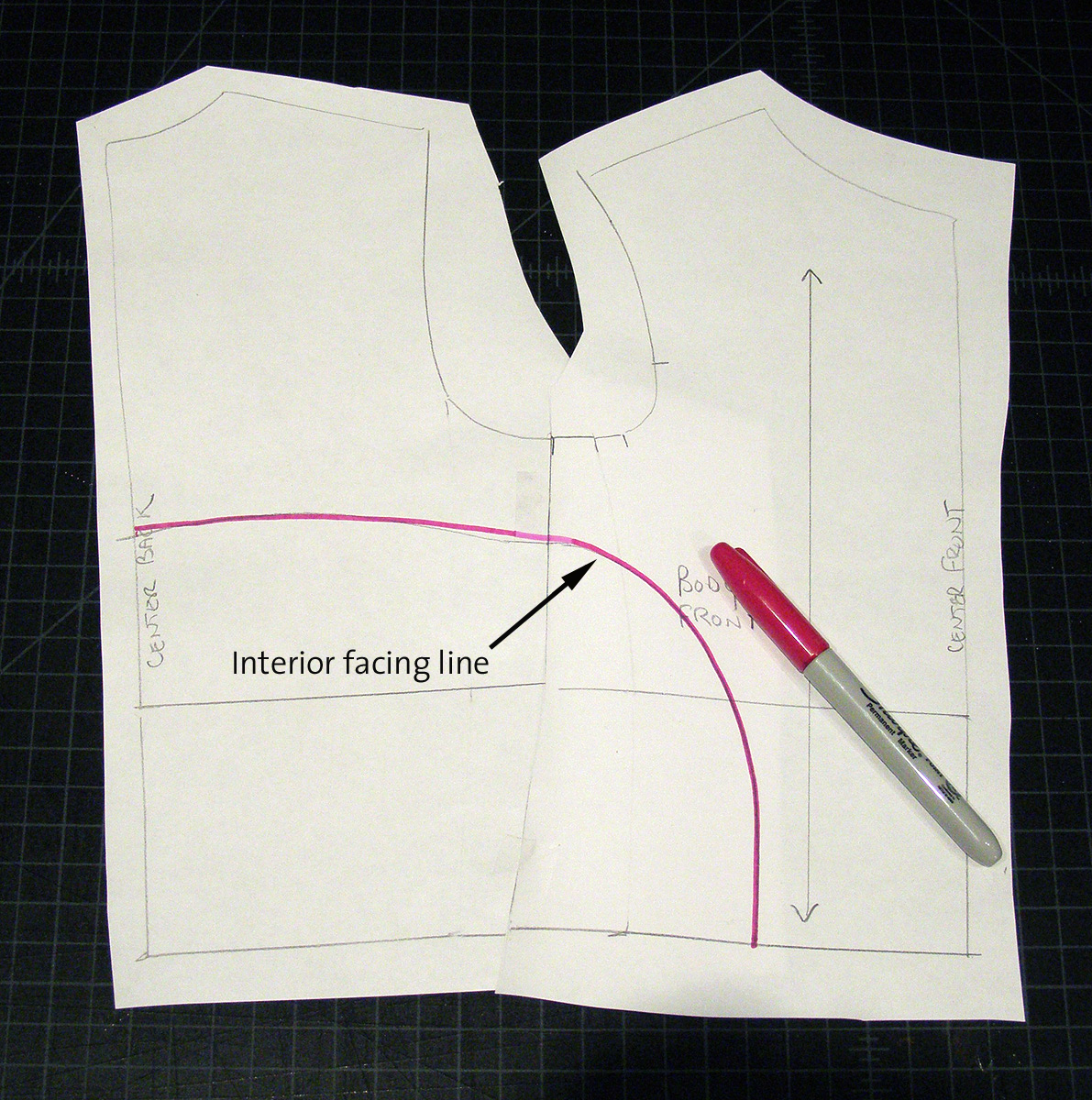

The pink line shows…
